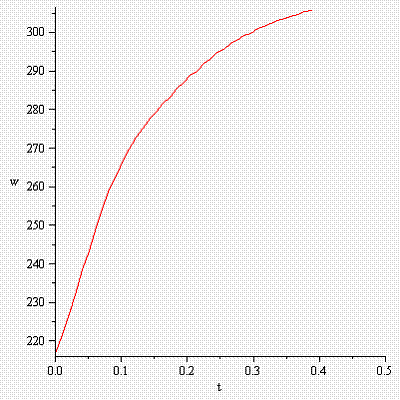

Variatia vitezei unghiulare W(t)

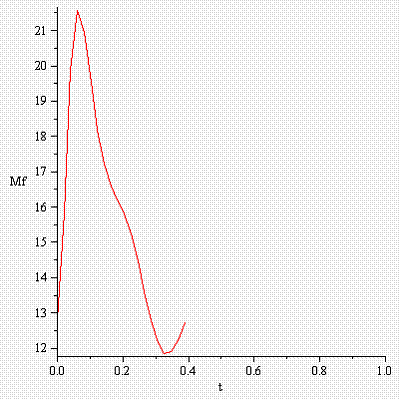

Variatia cuplui electromagnetic M(t)

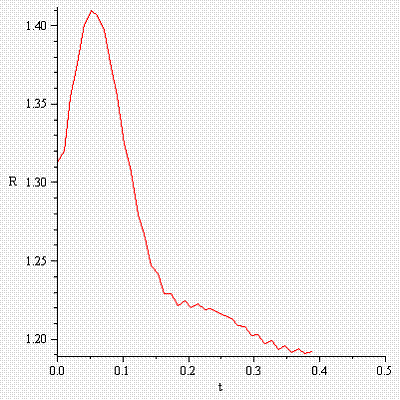

Variatia fluxului rotoric r t)

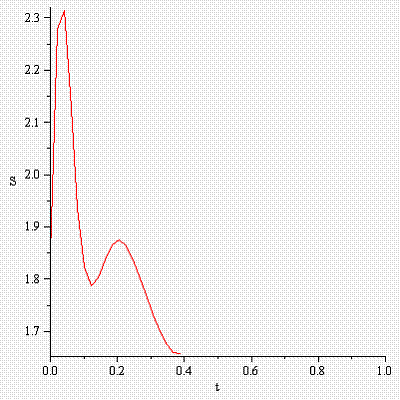

Variatia fluxului statoric s t)

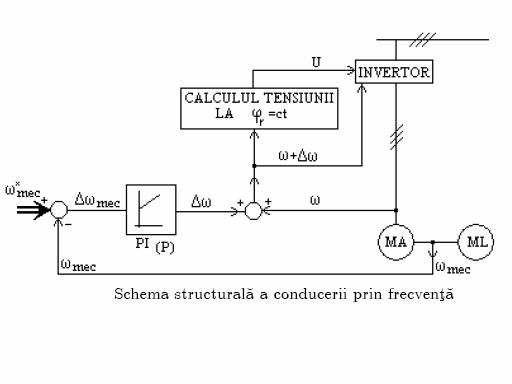

Actionare scalara
-schema de actionare si grafice
Conditii initiale
Mrez=12.39[Nm]
n=2072[rpm]
mec= 216. 87[rad/s]
r 3.72[rad/s]
= 220. 59[rad/s]
U=214. 05[V]
f=35.12[Hz]
Conditii finale
Mrez=12.39[Nm]
n=2900[rpm]
mec 303.53[rad/s]
r 3.72[rad/s]
= 307.25[rad/s]
U=291.74[V]
f=48.92[Hz]

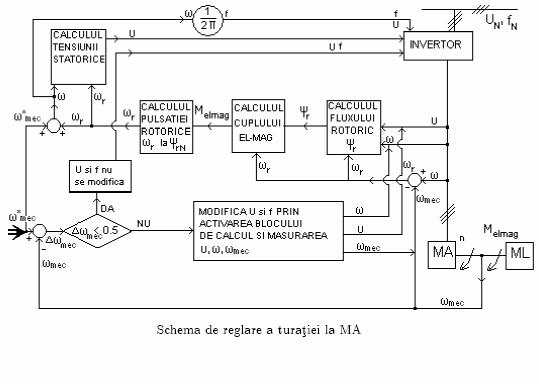

Actionare vectoriala
-grafice si schema de reglare
Conditii initiale
Mrez=12.39[Nm]
n=2072[rpm]
mec= 216. 87[rad/s]
r 3.72[rad/s]
= 220. 59[rad/s]
U=214. 05[V]
f=5.12[Hz]
Conditii finale
Mrez=12.39[Nm]
n=2900[rpm]
mec 303.53[rad/s]
r 3.72[rad/s]
= 307.25[rad/s]
U=1.2* mec+20* ωr [V]
f=48.92[Hz]
|
